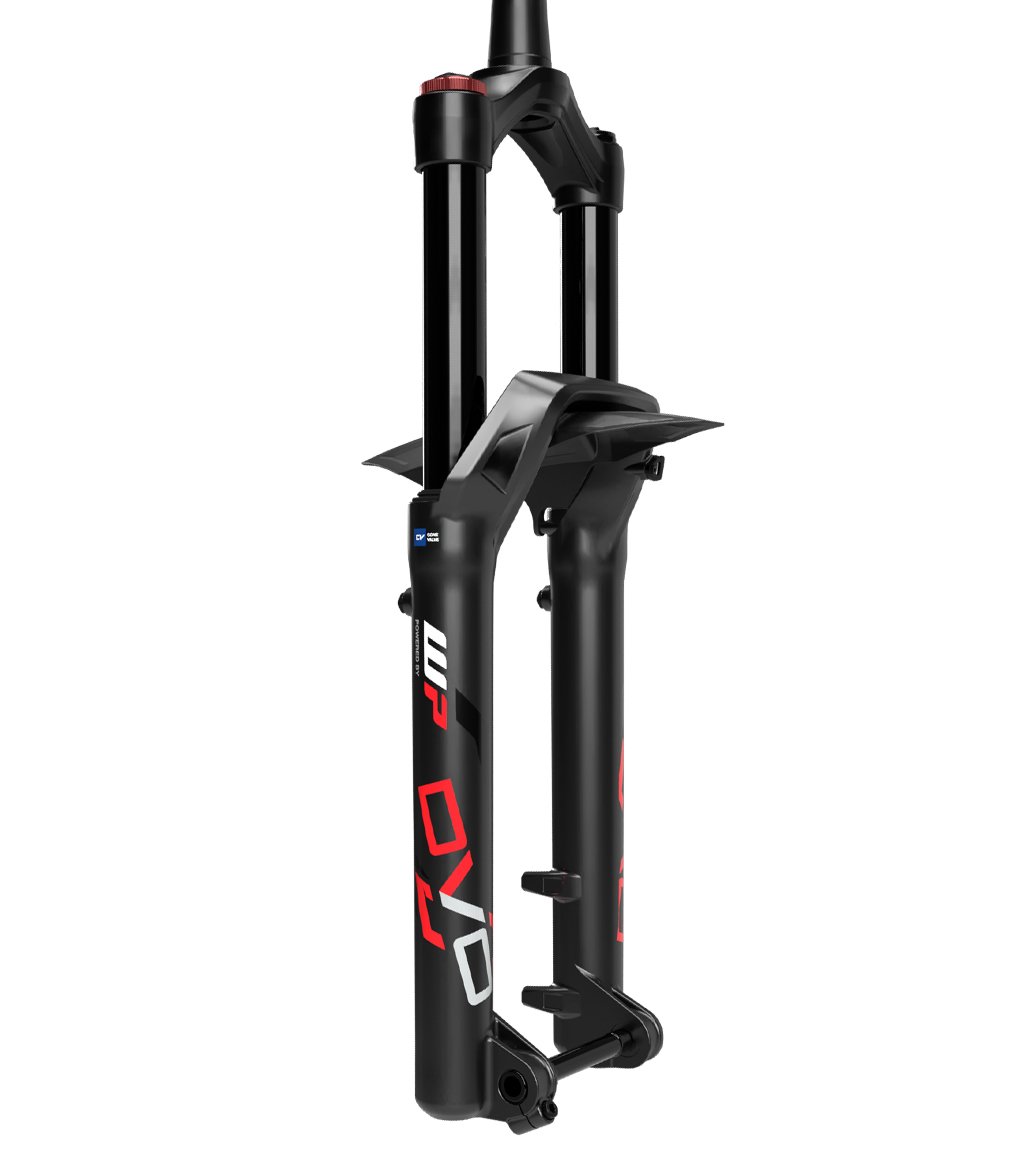

Onyx DC D1

OEM Option Only

Fender Included

Boost Adapter Included

Specs

Wheel Size:

27.5 | 29

Adjustments:

High/Low Speed Comp. – Rebound – OTT – AVA Volume Adjust

Travel:

203mm

Starting Weight:

2900g.

Crown Offset:

48mm

Axle to Crown:

27.5 = 585mm | 29 = 587mm

Stanchions:

36mm

Axle:

20mm Boost- Comes with rotor spacer to convert non-boost wheels

Steerer:

1-1/8″ Aluminum

Disc:

Direct Mount 203mm

Color Options:

Black | Green | Blue

RESOURCES

YOUR HANDS WILL THANK YOU.

Our industry exclusive OTT feature really sets DVO product apart from anything else. It allows you to perfectly fine tune how the initial stroke feels without any mid/end stoke compromise. You really do get the best of both worlds.

The OTT feature works by using a 5mm allen key to externally add or remove preload on a coil negative spring. Once you’re about 30% of the way through the travel, the OTT spring is completely disengaged and you get into the positive air spring which controls your mid-stroke and bottom out. Set your air pressure for how you want the fork to feel in the mid to end stroke and fine tune your small bump sensitivity with the OTT feature.

INTEGRATED FENDER

For a clean and polished look that both functions and looks killer. A fully integrated fender comes with your fork for those sloppy days on the mountain!

COMPRESSION BLADDER

At the heart of the damper is our compression bladder. An industry exclusive feature that surrounds a bladder with a large volume of oil and compresses it throughout the entire stroke. This provides unrivaled small bump sensitivity, durability, and damping consistency for long rides in rough conditions.

• No stiction
• Large oil volume
• Consistent Damping
• Extremely Durable
• Unique Ride Characteristics

AVA - ADVANCED VOLUME ADJUST

An all new feature taking volume tuning to the next level. Use volume spacers to change the depth of the air piston, effectively reducing or increasing the air volume. Perfectly tune the amount of overall progression you desire.

With the addition of the AVA system and our exclusive OTT Off the Top adjustment, you now have complete control over the beginning, mid, and end stroke. Now that’ll get ya stoked.
